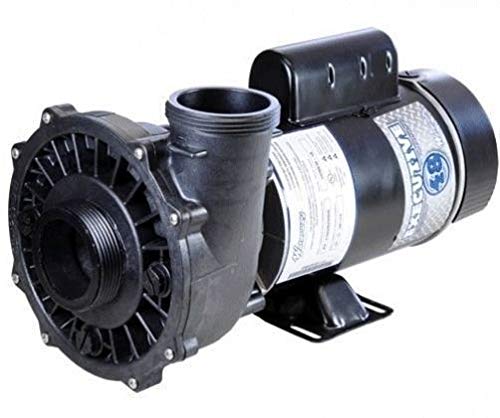

4.5-HP 230V Two-Speed Spa Pump, Side Discharge, 48-Frame

Brand: Plastics Features: 4.5 HP 3450/1725 RPM, 2-Speed, 12.0/3.5 amps, 230V 60hz.

Key Features

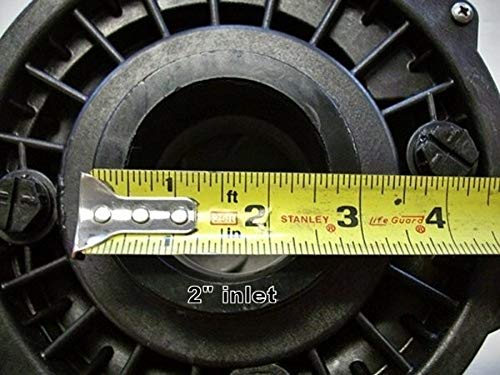

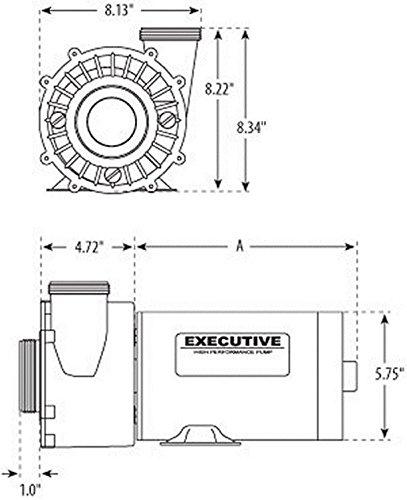

• 2″ x 2″ 48 Frame; 2″ Inlet/Outlet; Ships with 2″ Unions Large 6.5″ diameter wet end for higher head pressure Overall Length = 18″ Height 8.22″; Automatic Overload Protection 48 Frame; 1 Year Manufacture Warranty Details: Ships with 2″ Unions.
• PLEASE READ: There is no industry standard for Unions.
• The various brands have their own unique style, which means you must use the unions provided with our spa pump.
• This will most likely involve cutting off your old unions and installing the new ones shipped with the spa pump.
• If your heater is directly coupled to the spa wet end, then our pump will probably not work as the union will most likely be different.
• Be sure to look at the motor voltage, not the voltage supplied to the spa to determine the correct pump voltage.
• When removing power cord from existing pump we recommend you mark your wires for”common”,”High speed”,”low speed”.
• The pump does not come with a power cord.

Product Details

Review the stated dimensions, materials, capacity, power requirements and included components to confirm that the configuration matches the intended application.
